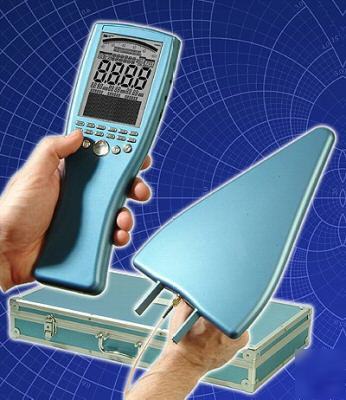

7GHZ handheld spectrum analyzer with emc logper antenna
The world's first handheld (PDA size!) low-cost spectrum analyzers!
1MHz to 7GHz incl. EMC LogPer antenna
Details see manufacturers website at emf-meter.com
REAL spectrum analysers at the price of a multimeter!
Aaronia Spectran HF-6080 Spectrum Analyzer 1MHz-7GHz
Our ULTIMATE RF VECTOR spectrum analyser for the pro user.
Several included accessories (SPECTRAN special battery and battery charger) and the extended functionality (like DIRECT spectrum display and DECT analysis!) particularly allow PROFESSIONAL measurements at an affordable price. The integrated USB 2.0 interface allows connection to a Windows PC for enhanced signal analysis.
PC connection (USB) and various additional features. INTERNAL data logger for long-term recordings.
Heavily extended frequency range up to 7GHz. The HF-6080 thus also lends itself as a cost-effective measurement solution for all 2.4GHz and 5GHz 802.11a WLans, the 5cm amateur radio band and VHF/UHF point-to-point radio frequencies.
SPECTRAN 6000 analyzer with LogPer antenna and aluminum case
Same as SPECTRAN HF-6060. In addition:
• Vastly expanded range up to +30dBm**
• HyperLOG 6080 instead of HyperLOG 7060
• Frequency range: 1MHz to 7GHz
• Typ. level range: -90dBm to +30dBm**
THE ultimate 7GHz spectrum analyser for the measurement professional at an absolutely stunning price. This unit can do it all. Vastly extended range up to full ICNIRP (+30dBm**). Ideal for the measurement technician and authorities for measurement of signal sources up to 7GHz and for calculation of ICNIRP exposure limits.
This NEW Revision3 offers a lower noise floor and a optional realtime PEAK power detector.
Even more affordable as part of our MEASUREMENT KITS
• Option 001: 1MB Memory expansion
• Option 002: 5ppm frequency reference
• Option 204: 8GHz REALTIME broadband PEAK power detector
• Option 205: 10GHz REALTIME broadband PEAK power detector
**Up to +10dBm internal; +30dBm with opt. ext. attenuator.
Overview of features SPECTRAN® RF spectrum analyzers / REVISION 3
APPLICATION EXAMPLES: Measurement of (aktive) radar, mobile communications, mobile phones, UMTS, DECT phones, transmission towers, WLan, Wifi, Bluetooth, microwave ovens, amateur radio, TETRA, radio/TV broadcast stations, etc.
Optional Power-Detector (Maximum usable frequency)***
Level [dBm] range (typical) Min
Level [dBm] range (typical) Max
Power flux density [W/m²] Range Min
Power flux density [W/m²] Range Max
Vector power measurement (I/Q) and True RMS
Standards-conformant exposure limits (ICNIRP, BGV B11, BlmSchV etc.)
ADVANCED HOLD mode (HOLD function)
INTERNAL data logger (long-term measurements)
FLASH memory including firmware update (over the Internet)
“Clear text†signal identification with direct frequency display
Configurable antenna and cable calibration data
Exposure limits display with simultaneous percentage display
Main display in dBm, V/m, A/m and dBµV (switchable)
ADDITIONAL display in W/m2 with AUTORANGE (pW, µW etc.)
High-resolution 50 segment bargraph (trend display)
3fold marker display (ex. 3x power & frequency at once)
USB 2.0 interface (computer connection)
DC input (max. 15V) for external power supply
JOG DIAL (multi-function rotary control) for single-hand control
Option 001 (1MB memory expansion)
Option 002 (5ppm time base / offers higher accuracy)
Option 201-205 (REALTIME broad band power-detector)
INCLUDED ACCESSORIES in addition to the base unit
HyperLOG EMC directional LogPer antenna (model) & SMA-cable
Aaronia 7,2V high-performance battery (1300mAh) & charger
Aluminum carrycase incl. custom padding
PROFESSIONAL PC analysis software (windows, download via internet)
* Further spectrum analysers up to 9,4 GHz are already in development. Please contact us for further details!
Range and accuracy can change depending on frequency and used parameters. Precision values are based on Aaronia calibration-reference and only valid under specific test conditions. Unless otherwise stated, these specifications apply for the reference condition: ambient temperature 22±3°C, relative air humidity 40% to 60%, continuous wave signal (CW), RMS detection
** Internal: +10dBm. External (with optional 20dB precision attenuator): +30dBm.
*** Depending on frequency the optional PEAK power detector offers sensetivity up to -50dBm and max. +10dBm input power with an extremely fast reaction time.
The NEW Revision3 offers a lower noise floor and a optional realtime PEAK power detector.
Specifications as of 10.5.2007.
© Aaronia AG, DE-54597 Euscheid, www.aaronia.de, Tel. ++49(0)6556-93033
