7L x 10D fitzpatrick chilsonator with granulator - s/s
phone: (***)-831-8485 - fax: (***)-831-8414

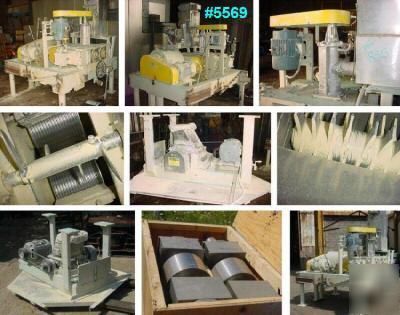

7L X 10D FITZPATRICK CHILSONATOR WITH GRANULATOR - S/S
1 - used model 7LX10D Fitzpatrick Chilsonator
Stainless steel contact surfaces
10 in. dia. x 7 in. long rolls. 6.0 to 24.0 RPM
0-11,900# roll pressure. 440-4400#/hour
Upper feed hopper (collects virgin and recycle product)
to 1/2 HP 230/460V variable speed horizontal feed screw (controlled feed)
into 5 HP 230/460V variable speed vertical feed screw (which pre-compresses and deaerates product)
into 15 HP 230/460V chilsonator rolls (with manual hydraulic actuator for regulating pressure on rolls)
to Falk model 8C3-02A6 Gearbox 56.91:1 ratio, service rating 15 HP
Chilsonator alone weighs approx. 8,500 lbs
After rolls, product drops into a 7.5 HP 230/460V Fitzpatrick model DKASO-12 (serial number 8097) Comminutor with fixed knives
With (2) spare sets of rolls (1) of which is represented as unused and other spare parts
Last used in a synthetic diamond manufacturing facility
Video available showing machine in operation at:
http:// /video/5569v.mpg
