Tek 3001 gpx 1GHZ logic analyzer system w/ 32GPX module


This system has been well-used and well cared for by a single owner.
1 GHz Timing and State Logic Analyzer System
* 1 GHz High-speed Timing Analysis
* 32GPX Module installed giving 80 Channels of data capture capability
* Simultaneous State and Timing - No Double Probing
* Real-time Performance Analysis
* Links to High Level Languages for Software Debug
* Industry Standard File Outputs
This LA is in fine working order with software and some probes included.
The system is capable of timing captures at rates from 1 sample per 500 mS to 1000 MSa/s and state captures up to 80 MHz.
Included are some of the clip-on probes, the power cord, two of the plug-in probe pods, and all four disks of software. This system is a floppy-driven system.
It powers up, passes self-check and boots when the system floppies are inserted.
You get everything in the pictures.

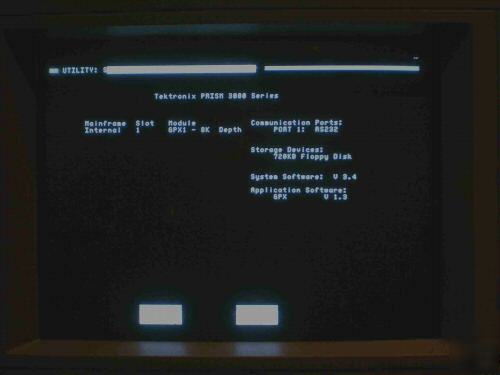

The main unit is very clean of wear. All functions of the LA work as well as when it came from the factory. The screen shots show some of the displays available in its various modes of operation.
The equipment will be well-packed for a long trip using professional packing materials regardless of how far it is actually going.
