Busio-photorelay (busio photo-relay) basic stamp, pic

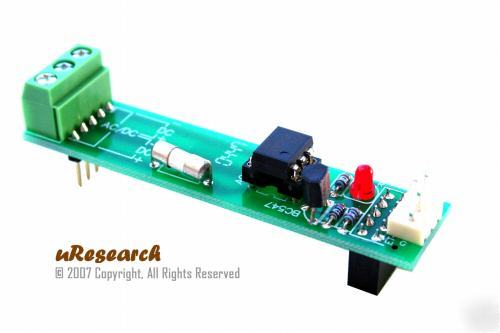

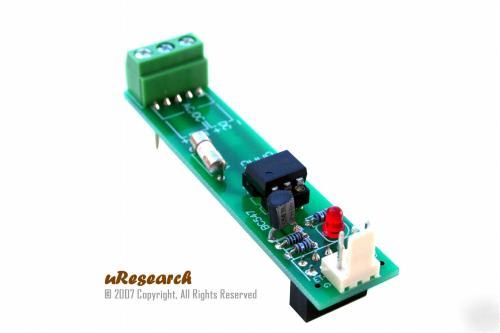

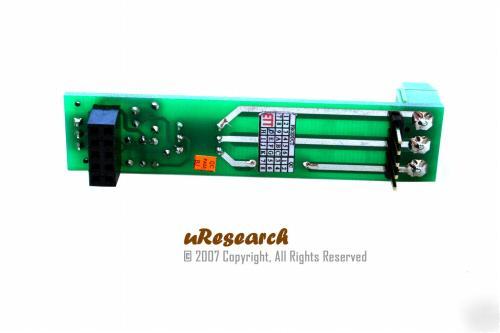

The board can be use with MR-BusIO-MAIN board or stand-alone. PCB size is 0.63†x 2.80â€

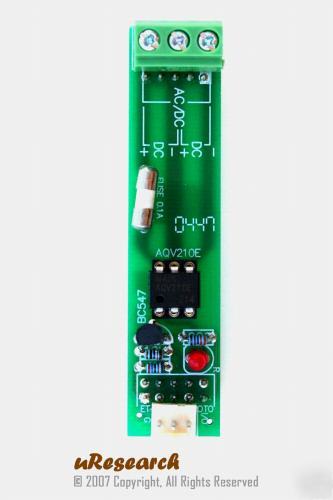

The main of the circuit is AQV210E IC. The internal of the IC consists of LED and Optoelectronic which use light for transmission. This make the input and output totally isolated.
The operation of this board starts when applying logic HIGH to an I/O pin. The voltage get divide down to turn on BC547 transistor which then activate AQV210E PhotoMOS and indicator LED. The current is then start flowing at the 3-PIN terminal block.
Please take a look at AQV210E datasheet for more information.
User can connect output AC or DC load up to 350V at 130mA. It can control various types of loads such as relays, motors, lamps and solenoids.
User can use this board to detect AC voltage.
For more information please see: MR-BusIO-PHOTORELAY User Manual
“This is sold fully assembled and testedâ€
