Aida, 220 ton stamping press no. nsu-S2-2000, 2003
MACHINE TOOLS * PRINTING SHOPS * PLASTICS INDUSTRY * TEXTILE INDUSTRY

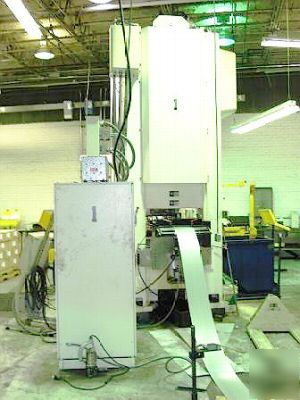

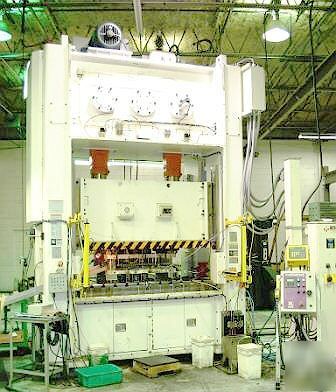

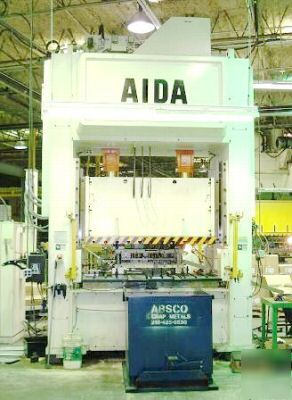

AIDA, 220 Ton Stamping Press No. NSU-S2-2000, 2003, with Complete Coil Line

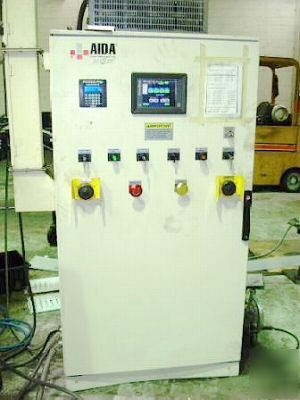

Air Clutch & Brake with Selector Controls,
Shut Height Over Bolster: 22.2",
Motorized Slide Adjustment: 5.9",
Bed Area: 72" L-R x 42.1" F-B,
Slide Area: 72" L-R x 42.1" F-B,
Speed (Variable): 50 to 100 SPM,

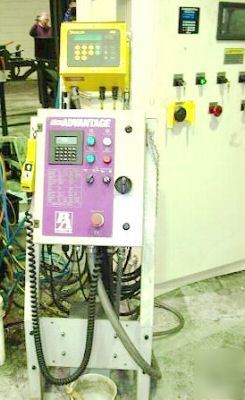

20" x .105" PA Industries Ultra Advantage Servo Feed #SRF-20 with 3.5"
Diameter Rolls and Pulling Power of 625 Lbs.,

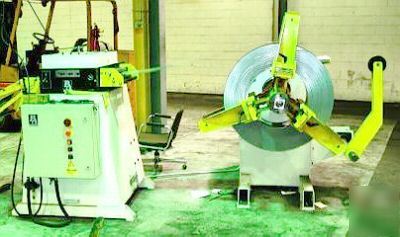

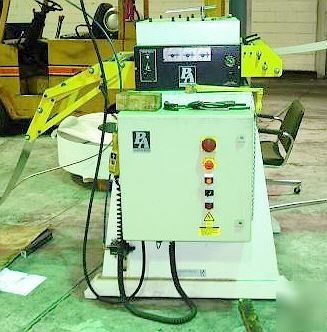

PA Industries Heavy Duty Straightener #SS207HD, 20" Wide, (4) 3.15" Diameter
Pinch Rolls, 0-900 IPM, .030" to .165" Capacity, (7) 3.15" Diameter
Straightening Rolls, S/N# X17245-02,

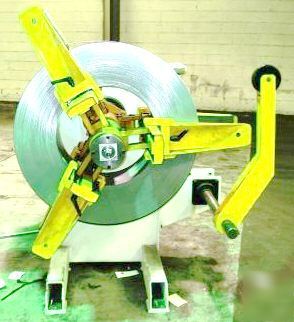

PA Industries Motorized Stock Reel #SRA-6524, 6500 Lb. Capacity, 15.5" to
20.5" I.D., 60" O.D., 24" Wide, S/N# X17429-01,
Recirculating Oil Lubrication System,
(2) Pneumatic Counterbalance Cylinders,
Dimensions, approx: 144" L x 84" W x 225" H.
If you wish to see the machine under operation please click on the link below:
http:// /watch?v=Uae1c7SgV50
Additional information will be posted as it becomes available.
* PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION
$185,000, Rigging is additional
Complete company information: address, contact person, phone number, fax number, destination address if different then company address already provided.
Payable to A&A Machinery Sales
Wire Transfer, Cashier’s Check/ Money Order accepted for immediate release. Personal/ Business Checks need approximately 2 weeks for confirmation that the check has cleared our bank before item is released.
Trucking, palletizing or loading / securing into overseas container
