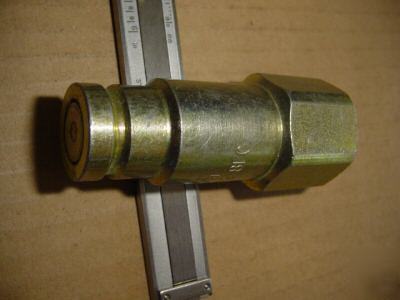

Parker flush face hydraulic quick-connect fitting "ff"
Series FF interchange with Aeroquip FD49 and Parker FF couplings. Self-cleaning flush face valve design minimizes fluid loss resulting in a cleaner, safer work environment. Automatic, push-to-connect couplings provide high flow and low pressure drop assuring maximum hydraulic tool performance. To reduce the possibility of accidental disconnect, a sleeve lock safety feature requires turning the collar to unlock the coupling. These quick disconnects are made from steel. Conforms to ISO 16028 interchange standard. Operating Pressure: 3000 PSI.
* Flush Face Double Shut-Off Hydraulic Quick Coupler Nipple.
* Referred to as "Dry Seal" type quick couplers.
* Heavily plated steel construction.
* Shut-off valves in the nipple and coupler.
* Face-guide is designed to simplify hook-up without slip-off.
* International interchangeability in application requiring no fluid loss.
* Rated at a working pressure of 3,000 psi.
* Temperature Range: -40° to 225° F.
* Seals are made of nitrile.
* Conforms to all the requirements of ANSI/HTMA.
* Body Size: 3/8 ( internial size equal to 3/8 Hyd line)
* Female Thread: 1/2 Port (3/4 X 16 Straight Thread for O-Ring Seal)
Condition of the fittings is NEW. Most fittings are in perfect condition. Some will have a little tarnishing or discolorization. These fittings are still in perfect working condition.
