R&s rohde & schwarz URE3 rms / peak voltmeter
* Description: The R&S / Rohde & Schwarz URE3 RMS / Peak Voltmeter is well suited to a vast array of applications due to its wide frequency range (10 Hz to 30 MHz), high accuracy, built-in frequency counter and peak-responding rectifier. Other features include:
* True RMS weighting for AC and AC + DC
* More than 30 measurements/s
* 41/2-digit display and analog display with selectable scale
* Very high measurement accuracy
* Highpass and lowpass filters
* Relative measurement, maxima/ minima
* Zero function allows noise voltages and the inherent noise to be compensated for, the measurement accuracy being thus increased in particular at low levels
* Convenient menu-guided operation
* Use of commercial probes, taking into account their division factor in the displayed result
* Peak-value measurement (positive, negative, peak-to-peak) without tilts and overshoots
* Fast RMS measurement even of very low-frequency signals
* Frequency measurement from 10 Hz to 30 MHz
* Ultrahigh measurement accuracy through automatic frequency response correction
* In/out option: dual-channel analog output, ready output, trigger input, TTL frequency counter input
* The URE3 is ideal for the following applications:
* Level measurements in audio range
* Interference measurements on switch-mode power supplies
* Measurement of extremely fast dialling signals and detection of simultaneously transmitted supply voltages in radiotelephony
* Automatic quality control of audio and video tapes
* High-frequency measurements in digital magnetic storage and optical data storage
* Peak weighting in video measurements (sync signals)
* Secondary calibration standard
* Datasheet can be viewed at: http://www2.rohde-schwarz.com/file_6603/URE3_e.pdf
* Cosmetic Condition: Very Good

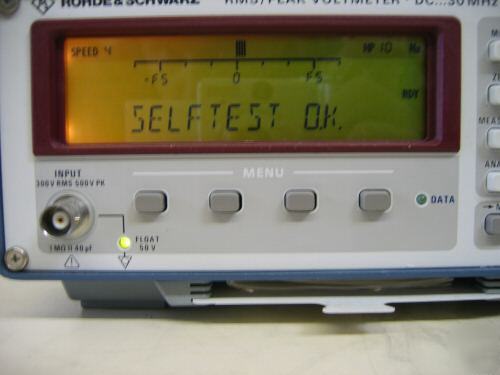

* Working Condition: Passes self-test and came from working environment
* Other Comments / Notes: Includes User Manual
