36" x 26' cincinatti hypro planer 50 hp 3 heads

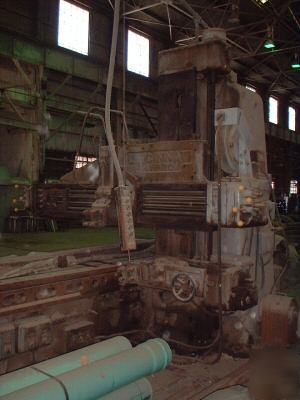

(1) USED Cincinatti Hypro 36" x 26’ Openside Planner; S/N 7321
Area of Table……………………………… 36’’ x 27’ F-B (working)
Maximum Table Stroke..………………….. 27’
Maximum Under Rail……………………… 38”
Maximum Planing Width………………….. 36”
Feeds, Horizontal and Vertical……………..
Vertical Travel of Rail Head Slide………… 15”
Horizontal Travel of Side Head Slide………
Vertical Travel of Side Head………………. 12”
All Heads Swivel (left or right)……………. 45°
50 HP M.G. Set 25 HP D.C. Motor(direct)
220/440VAC; 3ph; 60HZ; 60/120AMP; 1765RPM - 107/240V; 88/212AMP; 250-1200RPM
Auto Reciprocating Lube System
Power Feeds and Rapid Traverse on all Heads
Height………………………………… 10’ 4”(w/o pendant)
Width…………………………………. 120”(w/o drive)
Length………………………………… 56’ 6”(complete)
F.O.B……………………....Casa Grande, AZ.
