Exfo ftb-400 fiber sm mm vfl power meter otdr multitest
EXFO FTB-400 Universal Test System (8-Slot) with...
FTB-7323B-B-EI Single-Mode 1310nm 1550nm OTDR Module
FTB-7212B-D-EI Multimode 850nm 1300nm OTDR Module
EXFO FTB-3922X-12D-EI MultiTest Module
This Unit Has Just Returned From CALIBRATION!
"Combines physical, optical, transport and datacom testing in a single box"
Included Accessories Listed at the Bottom.
Be sure to add us to your Favorites list!.
Warranty: 30 Day Exchange Warranty

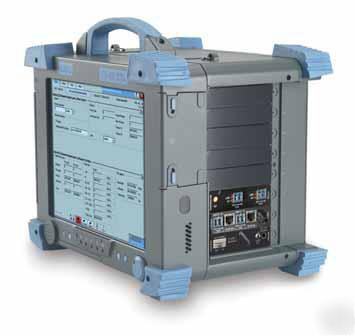

System "The ultimate platform for network experts"
If you're looking for high efficiency, the FTB-400 Universal Test System is the answer. Benefit from advanced test operations in outside plant installation, maintenance and troubleshooting. Evolve with the latest technologies.

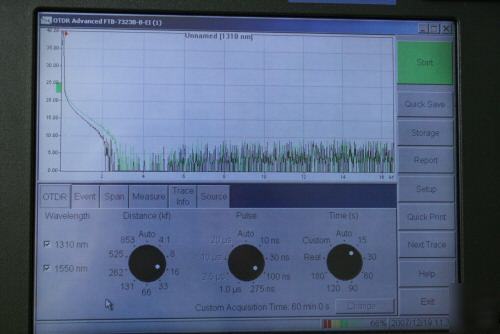

EXFO FTB-7323B-B-EI Singlemode OTDR Module
* Wavelength (nm): 1310 +/-20 / 1550 +/-20 nm
* Dynamic range (dB) at 10 microseconds: 37.5 / 35.5 dB
* Dynamic range (dB) at 20 microseconds: 38.5 / 37.5 dB
* Event dead zone (m): 3 / 3m
* Attenuation dead zone (m): 10 / 15m
EXFO FTB-7212B-D-EI Multimode OTDR Module
* Maximum Wavelength: 1300nm
* Dynamic Range(dB) at 100 ns/1 us: 25/29
* Event Dead Zone (m): 1.5/1.5
* Attenuation Dead Zone (m): 5/5
EXFO FTB-3922X-12D-EI Multimode MultiTest Module
* 1625 nm testing provides worst-case attenuation for the L band
* Fiber identifier detects 2 kHz signals
* Notepad feature documents power meter results in the field or in the office
* Power meter or optical loss test set uses manual or automated operation
* Visual fault locator features 650 nm visible bright red source
* Ultra-High-Power power meter models
* Wavelength range (nm): 780 to 1625
* Measurement range (dBm): 10 to –68
* Uncertainty (%) 3,4 ± 5 ± 5
* Linearity (dB): ± 0.06 (0 to –48 dBm))
* Wavelengths (nm): 850 ± 30/ 1300 ± 30
* Spectral width (nm): ? 50/80
* Output power (dBm): ? -20/-21
* Stability (8 hours) (dB): ± 0.15
* Wavelengths (nm): 850/1300
* Maximum deviation (dB): ± 0.5
* Wavelength (nm): 650 ± 10
* Output power (CW) (dBm): -1
If you're looking for high efficiency, the FTB-400 Universal Test System is the answer. Benefit from advanced test operations in outside plant installation, maintenance and troubleshooting. Evolve with the latest technologies. From power readings and OTDR testing to optical switching, CD and PMD analysis, DWDM testing, protocol, datacom and data post-processing—the FTB-400 Universal Test System does it all. More importantly, the FTB line of swappable test modules continues to expand with new test applications and accelerated test routines. The powerful FTB-400 can perform simultaneous acquisitions and data post-processing.
The ultimate platform for network experts
* Simultaneous acquisitions and fast data post-processing
* Scalable range of test applications and field-interchangeable modules
* Pentium-powered Windows operating system
* Easy-to-read, high-resolution 30.7 cm transflective (TFT) screen
Combining physical, optical, transport and datacom testing in a single box
* Physical and optical testing: complete fiber and signal characterization using OTDR, OLTS, PMD, CD and OSA test modules
* Transport and datacom testing: QoS assurance validation using SONET/SDH and Ethernet test modules
* This multipurpose, high-power, eight-slot back receptacle houses any of EXFO’s FTB test modules and delivers first-class features:
* Complete dispersion characterization—CD, PMD and OTDR—in a single platform
* Full compatibility with the Ethernet, Fibre Channel, next-generation SONET/SDH and DSn/PDH test modules
* Integrated power supply (no external converter)
* Power management is a snap, thanks to the ToolBox software. EXFO’s FTB-400 is based on the Windows® 2000 operating system, run by a Pentium-series processor with up 512 MB of SDRAM
* Fast, intuitive Sleep mode for power conservation
* Far-ranging operating time
* Automated power management
* Get moving faster, get results faster. New-generation processing power means acquisitions and data analysis are quicker than ever. And enjoy the advantage of EXFO's exclusive online data post-processing.
* Quick, easy data transfer
* Extremely fast acquisitions
* Efficient data post-processing
* Touchscreen, color, 800 x 600 TFT 307 mm (12 1/16 in)
* Audio microphone In 3.5 mm
* Audio speaker Out 3.5 mm
* Two PCMCIA type II or one PCAMCIA type III
* Internal 40 GB hard drive minimum (over 750 000 OTDR test files)
* Internal 3.5 in 1.44 MB floppy drive
* External USB read/write CD-ROM (optional)
* Flash memory cards (256, 512, 1024 MB) (optional)
* Rechargeable NiMH battery pack (two batteries for two-slot receptacle, two for four-slot receptacle, four for seven-slot receptacle,
* two for eight-slot receptacle) > 8 h of continuous operation as per Bellcore TR-NWT-001138
* 100–240 VAC, 50/60 Hz and 12–24 VDC for the two-slot (GP-402) and the seven-slot (GP-407) module receptacles; 100–240 VAC,
* 50/60 Hz and 24 VDC for the four-slot (GP-404) module receptacle; and 100-240 VAC, 50/60 Hz for the eight-slot
* (GP-408) module receptacle
* operating: 0 ºC to 50 ºC (32 ºF to 122 ºF)
* storage: –40 ºC to 60 ºC (–40 ºF to 140ºF)
* 0 % to 95 % (non-condensing)
* Mainframe + eight-slot module receptacle: 318 mm x 343 mm x 246 mm
* (12 1/2 in x 13 1/2 in x 9 11/16 in)
* Mainframe + eight-slot module receptacle, including two NiMH batteries: 11.1 kg (24.5 lb)
* < 1.5 g. at 10 Hz to 500 Hz (on three main axes)
* e < 760 mm on six sides and eight main edges (according to GR-196-CORE)
* Spillproof and splashproof
* EXFO FTB-7323B-B-EI Singlemode 1310nm 1550nm OTDR Module
* EXFO FTB-7212B-D-EI Multimode 850nm 1300nm OTDR Module
* EXFO FTB-3922X-12D-EI Multimode MultiTest Module
* Option: (VFL) Visual Fault Locator
* Option: Optical Return Loss
