100MS/s pc-based usb digital storage oscilloscope
We are an official registered company
and can give you the best service.
please View my other items on my store
USB interface 100 Mhz dual trace digital storage
oscilloscope and Spectral analysis Device
DSO 2090 is a USB interface 100 Mhz dual trace digital storage virtual oscilloscope,
it need to be connected with PC to use and it can view signal waveform & spectrum.
be saved to disk for future use. This is a wonderful tool that you can use for measure
* Operating System: Windows 98/ME/2000/XP/VISTA
* Graphic Card: Microsoft DirectX supported , Screen resolution:

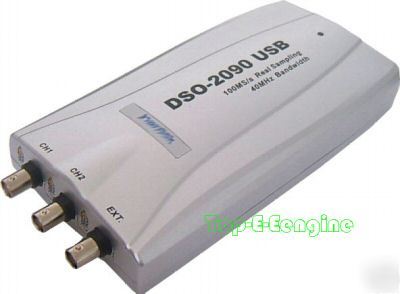

DSO-2090 USB is a portable PC-based Digital Oscilloscope.
DSO-2090 USB has the following features: 40MHz analog bandwidth, 100MHz real-time sampling.
DSO-2090 USB uses USB1.0 or USB 2.0 that supports plug’n play.
Best performance for your dollar
DSO-2090 USB has many features that is comparable to the high speed stand-alone DSOs. But it costs a fraction of the price.
DSO-2090 USB does not need an external power source, because it is bus-powered from USB.DSO-2090 USB is a Windows software that controls DSO-2090 USB.
DSO-2090 USB is easy to use. It is intuitive and easy to understand.
You can change DSO-2090 USB screen size as you need.
Various data format processing
DSO-2090 USB can save waveform in the following formats: text file, jpg/bmp graphic file, MS excel/word file.
DSO-2090 USB has fast screen update rate.
DSO-2090 USB has 23 measurement functions.
DSO-2090 USB uses digital persistence and histogram method so that the display resembles an analog oscilloscope screen.
10mV ~ 5V/div @ x1 probe(10mV, 20mV, 50mV, 100mV, 200mV, 500mV, 1V, 2V, 5V/div1,2,5 sequence)
35Vpk (DC + peak AC < 10 kHz, without external attenuation)
4ns/div ~ 1h/div(4ns, 10ns, 20ns, 40ns, 100ns, 200ns, 400ns, 1us, 2us, 4us, 10us, 20us, 40us, 100us, 200us, 400us, 1ms, 2ms, 4ms, 10ms, 20ms, 40ms, 100ms, 200ms, 400ms, 1s,2s, 4s, 10s,20s,40s,10m,20m,40m,1h /div 1-2-4 sequence)
Realtime sampling: 4ns /div ~ 400ms/div.
Edge trigger: Rising edge, falling edge.
Vp-p, Vmax, Vmin, Vmean, Vrms, Vamp, Vhigh, Vlow, positive overshoot, negative overshoot, cycle mean, cycle RMS, period, frequency, positive pulse width, negative pulse width, rise time (10%~90%), fall time (10%~90%), positive duty cycle, negative duty cycle
Addition, Subtraction, Multiplication, Division
Rectangular, Hanning, Hamming, Blackman Window
Universal Serial Bus (USB1.0,2.0)
No external power source required.
4. An Operating Manual in Engliah.
