Ct-systems 3000B service monitor manual CT3000B
CT-Systems 3000B Service Monitor Manual
This documentation is duplicated and provided WITH PERMISSION of the Intellectual Property Rights Owner
Sample High Res Pages (~9MB Zipped PDF)
Sample Standard Res Pages (~500K Zipped PDF)

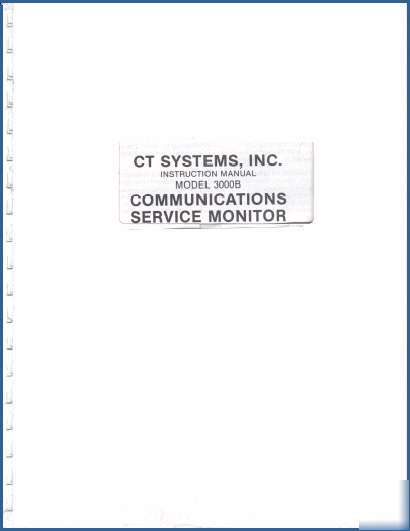

This manual covers the CT-Systems (Wavetek) Model 3000B Service Monitor. It is scanned from the original manufacturer's instruction (full service as well as operations information) manual. The scans came out well, and all information available in the original manual is available here.
Two PDFs of the manual are provided, in two resolutions. One is:
Text with Drawings at 600dpi 256 shades of grey
Schematics at 600dpi 256 shades of grey
Photos are not mentioned because the original manual did not use them, relying instead on technical drawings.
Color is not mentioned because there was no color used in the original manufacturer's manual, so none is present in this.
The other file is done in resolutions that vary depending on individual page content, but are never higher than needed to produce a useable quality, quickly navigable file that will do the job without consuming more time and resources than are needed.
We send you files in each resolution on the CD. You'll receive the large file, which is great for printing, plus the smaller, faster text-searchable version, which is great for research and finding which specific pages you may wish to print. That way, you can navigate, search and etceteras with the fast file and only use the large files when you want to print, conserving your time and resources. All original manual pages are supplied in both resolutions, with no pages added or subtracted.
The sample high resolution pages linked to above are three pages (one text page, one drawing page, and one schematic page) in a zipped PDF file that's almost 9 megabytes in size. The standard res samples are three similar pages, and they are in a zipped PDF of a bit under 500K. All these sample pages are taken directly from the finished product as supplied to you.
