Fujikura fsm-15S sm mm fiber fusion splicer w/ cleaver

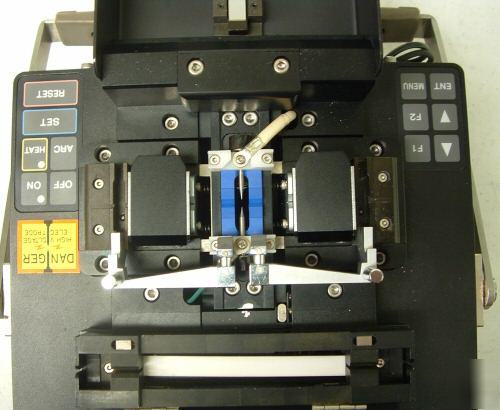

Fujikura FSM-15S A Single Mode & Multimode Arc Fusion Splicer with Cleaver.

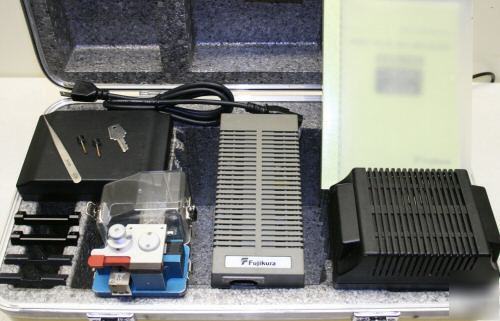

Included Accessories Listed at the Bottom.
Be sure to add us to your Favorites list!.
Warranty: 30 Day Exchange Warranty
A Marvelous Combination of Fusion Splicing Performance and Cost Efficiency! The entirely new single fiber fusion splicer model FSM-15S has just been released by Fujikura Ltd. Designed primarily for fiber optic subscriber loops or fiber-in-the-loop systems, the FSM-15S offers a perfect balance between performance and cost effectiveness.
The FSM-15S combines the small size and field portability of Fujikura's FSM-05SVH II palmtop series with the full automation, ease-of-use and advanced features found in the more expensive FSM-30S fusion splicer. The FSM-15S utilizes the precision V-groove alignment and loss estimation technology pioneered by Fujikura's mass fusion splicers to achieve excellent splicing results with today's improved geometry optical fiber.
SPECIFICATIONS Applicable Fiber Modes: SM, GI and DS fibers to ITU-T(CCITT) Recommendations G.652, G.651, and G653 respectively
Applicable Fiber Coating Diameters: 250 and/or 900 microns No. Of Fibers To Be Spliced: Single fiber to single fiber Splice Loss: 0.045 dB. Typ. with SM fiber 0.02 dB Typ. with GI fiber
Return Loss: >>60dB Cleaved Fiber length: 8 to 16mm Viewing Angle: Both X and y axes simultaneously Magnification Of Fiber: 100X Viewing method: CCD camera and LCD monitor No. Of Splicing Programs: 30 in total (10 for SM, 10 for GI, 10 for DS) Splice Loss Estimation To Be Made On: SM, GI, and DS fibers No. Of Splice Results To Be Stored: Last 100 splices Altitude Compensation Function: 0 to 3500 meters above sea level Mechanical Proof Test On Spliced Fibers: 200 grams (1/2 LB or 23 KPSI) standard unless ordered otherwise (450 grams [1 LB or 50 KSPI] optional) Applicable Splice Protector: Conventional heat-shrinkable splice protector with 60mm length, or alternatively 40mm length using the SPA-40 Splice Protector Adapter Power Supply: 12VDC from the interchangeable battery, external DC, or directly from AC (85 to 265VAC) using the ADC-06 AC/DC Converter No. Of Fusion Splices And Shrunken Splice Protectors Per Charge Of Battery.
* Fujikura FSM-15S A Arc Fusion Splicer
* BTC-01 Battery Quick Charger
