Max machinery transmitter 284-522 attaches to flowmeter

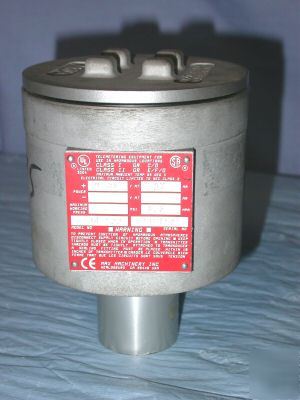

MAX MACHINERY FREQUENCY TRANSMITTER 284-522.
This item Retails for $750.00.
* Maximum Working Pressure: 1500 psi
* The 284-500 Series Transmitters are photo optic devices which convert the rotary motion of a typical Max flowmeter into an electrical signal whose frequency is proportional to the flowmeter RPM.
* The Transmitter has two output formats: a square wave of 100 cycles per revolution and a two phase output of 50 cycles per revolution.
* The single phase output has an anti-dither feature which makes it useful for low flow, zero velocity applications which may involve momentary reverse flow.
* A memory circuit will hold up to 128 pulses of negative flow, outputting only the net forward flow.
* The two phase output is useful for bi-directional applications.
* Both outputs are CMOS and TTL compatible and are generally able to travel at least 1000 feet of shielded cable.
* The Model 284-500 Series can operate from a voltage of 5 volts to 30 volts.
* A wide range, on-board regulator protects the circuitry from transient supply noise.
* No adustments are required for different supply voltages.
FOR MORE INFORMATION VISIT THIS SITE http:// /284.pdf
