Conbraco model 40-200-TK5 backflow prevention test kit
Backflow Preventer Test Kit (5 Valve)
Used in Class and Once in the Field!
Stored inside my home, non-smoking, climate controlled.

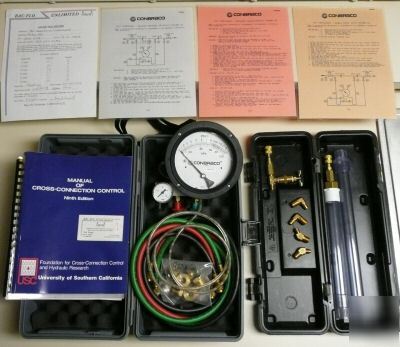

The Conbraco backflow preventer test kits are compact, lightweight and portable testing devices. They come equipped with a gauge, hoses and all required adapter fittings. Also included is a flexible or adjustable strap for hanging the gauge, laminated test procedures and a molded plastic carrying case with foam inserts. These are five-valve test kits used for testing all Reduced Pressure Principle, Double Check Valve, Spill Resistant and Pressure type Vacuum Breaker backflow preventers.

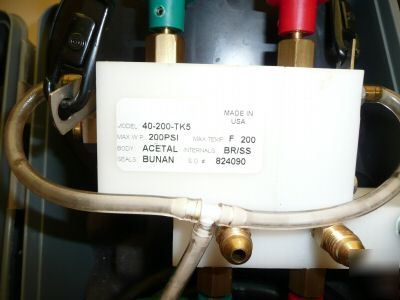

Model 40-200-TK5 five valve test kit is similar to the three valve kit (40-200-TKU) except it has an additional two valves that make it possible to bleed lines without disconnecting hoses.
* Differential pressure type with a dual scale of 0-15 psid/0-100kPa
* Differential pressure range with a +/- .2 psid accuracy (descending).
* Maximum Working Pressure: 200 psig
* Maximum working temperature: 150 °F
* Gauge: 4 1/2 " diameter face with thermoplastic gauge body
* Test Valves: Soft seated brass needle valves with replaceable seats
* Hoses: (3) 4' color coded with (1) each 4' long clear bleed tube
* Adaptors: 3 sets of brass fittings provided for hookup to all standard size test cocks
* Additional line-pressure gauge
* Laminated Test Procedure Instructions
Sight Tube Assembly for Use on a Double Check Valve Assembly
Manual of Cross-Connection Control 9th Addition
