New steelking galvanized structural steel pallet rack

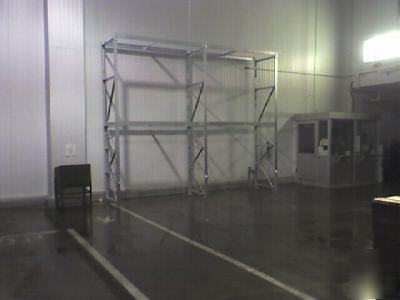

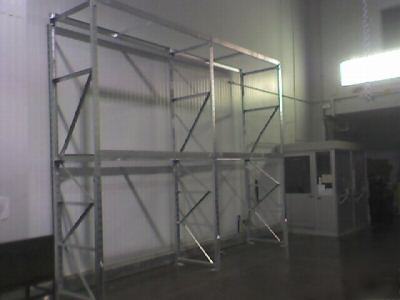

NEW STEELKING SK3000 STRUCTURAL STEEL GALVANIZED PALLET RACK FOR HEAVY-DUTY WET ENVIRONMENTS.
3" Channel Upright 42" x 168" Galvanized with Welded Angle Deflectors, Heavy-Duty Horizontal and Double Boxed-Column to 72". Frames have 25,000 lbs. capacity and beams have 5,500 lbs. capacity per pair.
4" Channel Beams are 96" and Galvanized
42" Bolt-In Pallet Supports are Galvanized
Steel King upright frame columns consist of 3" or 4" structural channel steel. Steel thickness, especially in corner sections, enables greater resistance to fork truck impact damage, while increasing load carrying capacity and resistance to seismic forces. Upright frames are punched on 4" vertical centers. Beam connector clips are specially punched to allow for vertical adjustablity in 2" increments. Diagonal and horizontal braces are used throughout the entire frame. Braces are 2" x 2" and 1.5"x1.5" structural angles, welded to the columns. Footpads are made of 7-gauge steel plates, and are welded to each column, efficiently dispersing floor loads. Each footpad features multiple anchor holes, facilitating installation and re-anchoring. Has a safety factor equaling l.92: 1. Minimum steel yields: Columns: 50,000 p.s.i. Balance: 36,000 p.s.i. All Steel King capacities are based upon minimum steel yields, rather than the actual average steel yield we receive. Your capacities, on average, will be greater than those stated, and will never be less than stated.
