15.9 gallon lee mix tank - t-304 s/s - .5 hp/xp
a r n o l d EQUIPMENT COMPANY
phone: (***)-831-8485 - fax: (***)-831-8414
15.9 GALLON LEE MIX TANK - T-304 S/S - .5 HP/XP

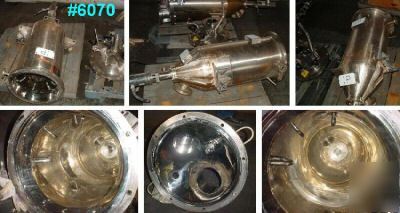

1 - used approx. 15.9 gallon Lee Mix Tank
T-304 stainless steel construction
Model 15.9 CBT. Serial #C2070S. Built 1995
Bolted dome top and cone bottom
16 in. ID x 28 1/2 in. straight side + approx. 11 in. cone bottom
Approx. 3 1/4 in. side bottom flanged outlet
and 1 1/2 in. bottom center outlet with Waukesha Valve (S/N 168501 95)
Flanges on side of tank stamped 304 & 304L stainless steel
Atmospheric internal pressure, design temperature 104 deg. F.
Top inlets include (1) 4 in., (1) 1 in. and (1) 5 in. flanged inlet for mixer
With .5 HP Lightnin Vektor Series Drive, UL listed. 230/460V
Stainless mixing shaft with pitched turbine blades
Unit appears to be in excellent condition
DWG CAD drawing available on request
