Orion air operated 3:1 oil distribution pump

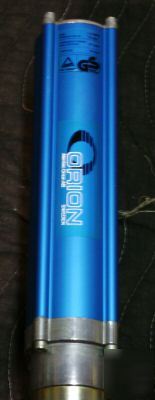

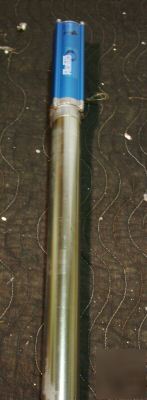

ORION 3:1 AIR OPERATED OIL DISTRIBUTION PUMP
Low pressure pump for the smaller oil distribution system
and lower vicosity oils. Suitable for connection to a bulk
tank or drum. Remote stub pump version can be wall or floor
mounted. Double acting air operated pump for oil and noncorrosive
Capacity Max 22 l/min., free flow, at 1,0 MPa, (10 bar)
Air pressure Max 1,0 MPa (10 bar)
** The 3:1 and 5:1 pump are equipped with a pressure relief valve. The use of a Pressure Relief Valve protects the system
components against excessive system pressure which can result from heat expansion.
(1ºC temperature increase results in approx. 10 bar increase in the static system pressure)
This pump is in excellent condition. It was never installed in the field. It was only used for comparison testing in a local R & D lab.
