Hp 8510C network system w/ 83631A & 8515A to 26.5 ghz
* Tested and Working within Manufacturors Specifications

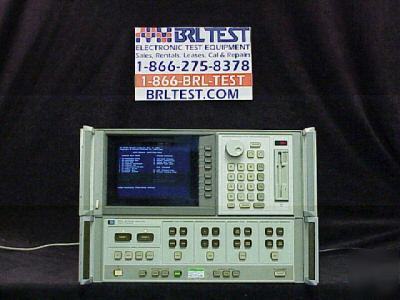

The Agilent 8510C network analyzer is an instrument which measures the complex transmission and reflection characteristics of two-port devices in the frequency domain. It does this by sampling the incident signal, separating the transmitted and reflected waves, and then performing ratios that are directly related to the reflection and transmission coefficients of the two-port. Frequency is swept to rapidly obtain amplitude and phase information over a band of frequencies of interest.
Agilent 8510C network analyzers utilize synthesized-frequency sources to provide a known test stimulus that can sweep across a range of frequencies or power levels. Agilent 8510C network analyzers also can perform ratioed measurements (including phase), which require multiple receivers. The Agilent 8510C can provide a wealth of knowledge about a device under test (DUT), including its magnitude, phase, and group-delay response.
* Line-Reflect-Match calibration
* Four S-param color display
* Real-Time Error Correction

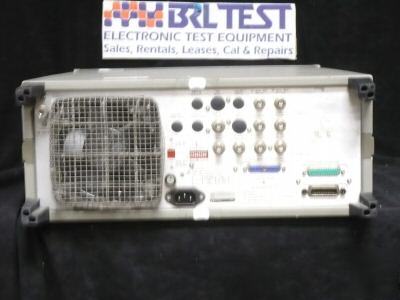

The Agilent 83631A is a dedicated source optimized for use with Agilent 8510 systems. It combines the high performance and accuracy of a synthesized source with the speed and versatility of a sweep oscillator. The Agilent 83631A provides broadband frequency coverage (45 MHz to 26.5 GHz) and precise 1 Hz frequency resolution. This source does not have modulation capabilities or a front panel keyboard and display. The Agilent 83631A comes with a rear panel output.
* Dedicated source for Agilent 8510 systems
* Synthesized 45 MHz to 26.5 GHz coverage

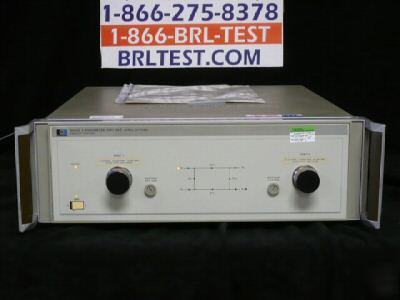

The Agilent 8515A s-parameter test set is available for the Agilent 8510C network analyzer for broadband coaxial measurements from 45 MHz to 50 GHz. The Agilent 8515A test set has an architecture that develops a separate reference channel for each incident port. RF switching is done with a built-in electronic switch. For active device measurements, the test set includes the ability to apply dc bias (external) to the test port center conductors. Also available are two 90 dB step attenuators, which allow control of the port 1 and port 2 signal levels.
* Separate reference channel for each incident port
* Built-in electronic switch
Sold with 7 day right of return if unsatisfied.
All purchases outside of North America must be made by wire transfer only.
Call BRL Test with any questions
