#CBW6 hammond chip breaking & cup wheel grinder #24891

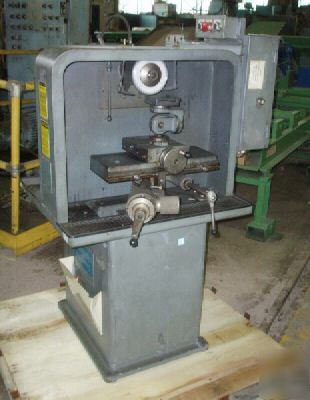

#CBW6 HAMMOND CHIP BREAKING & CUP WHEEL GRINDER
Serial No CBW6-2143, Model CBW6,
Left Hand Chip Breaking End W/2.5" VPS Angular Vise
Right Hand Cup Wheel End W/ Tilting Table
GSE Compound Protractor On Cup Wheel End
Reciprocating Table, Stroke.............. 8"
Tilting Table Dimensions, W x L......... 8.5" x 14"
Below Horizontal......................... 25-DEGREES
Above Horizontal......................... 15-DEGREES
Chip Breaker Wheel Diameter, Range....... 4" to 6"
Chip Breaker Wheel Face, Range........... 1/8" to 1/2"
Chip Breaker Wheel Hole Diameter......... 1.25"
Cup Wheel Diameter, Maximum.............. 6"
Cup Wheel Thickness, Maximum............. 1.25"
Cup Wheel Face Width, Maximum............ 1"
Grinding Wheel Spindle Motor............. 1 HP/1745 RPM
Electrical System........................ 440/3/60
Floor Space Required, L x D.............. 3'10" x 2'8"
Weight, Approximately.................... 875 LBS
PRICE: F.O.B. OUR WAREHOUSE.............. $1,950.00
All machines/equipment subject to prior sale.
