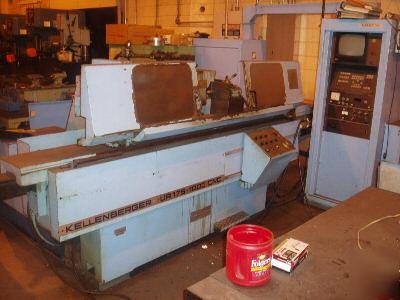

13" x 40" kellenberger UR175 x 1000 cnc univ. grinder
SPECIFICATIONS: STOCK # 108548
SWING..........................................................................: 13.78"
MAX. BETWEEN CENTERS............................................: 40"
MAX. GRINDING CAPACITY............................................: 13.78"
MAX. WORK WEIGHT CAPACITY BETWEEN CENTERS..: 220 LBS
TORQUE MAX ON CHUCK WORK...................................: 74 INCH/LBS
WORK HEAD MOTOR....................................................: 2HP
SPINDLE SPEED...........................................................: 8-800RPM
ASA 5/MT5 SPINDLE NOSE/INTERNAL TAPER
SPINDLE MOTOR.........................................................: 6.6HP
SPINDLE SPEED..........................................................: 1130RPM
MAX. WHEEL SIZE.......................................................: 16" X 2.5" X 5"
PERIPHERAL GRINDING WHEEL SPEED......................: 6890 SFPM
MANUAL INDEXING.......................................................: 25 DEG.
SPINDLE BORE............................................................: 4.72"
SPINDLE MOTOR..........................................................: 3 HP
TAILSTOCK...................................................................: MT4 INTERNAL TAPER
QUILL TRAVEL..............................................................: 1.94"
COOLANT SYSTEM WITH MAGNETIC SEPARATOR
