Vickers eea-amp-451-a-10 op amp amplifier card
Available for immediate purchase is
This card has been developed as a universal element for system construction. The large number of different OP AMP circuits, individual assignment to solder terminals and the possibility of external linking of the individual OP AMPs, make this card very versatile.
– Assignment to solder terminals, therefore highly flexible.
– External wiring of individual OP AMPs possible.
– 8 spindle-drive resistors on the front panel, for fine adjustment of the OP AMPs.
– 1 relay for enabling an amplifier.
– An LED on the front panel indicates the switching status.
Supply voltage . . . . . . . . . . ±15V ±5%, x 50 mA max.
Relay voltage . . . . . . . . . . . 24V ±20%, approx. 30 mA
Differential amplifiers . . . . . . . . . . . . . . 2
Summing circuits . . . . . . . . . . . . . . . . . . 2
P/I controllers . . . . . . . . . . . . . . . . . . . . . 1
Millivolt rectifiers . . . . . . . . . . . . . . . . . . 1
Inverters . . . . . . . . . . . . . . . . . . . . . . . . . 3
Voltage followers . . . . . . . . . . . . . . . . . . 2
Male connector . . . . . . DIN 41612, F48
Mass . . . . . . . . . . . . . . . . 0,14 kg (0.3 lb)

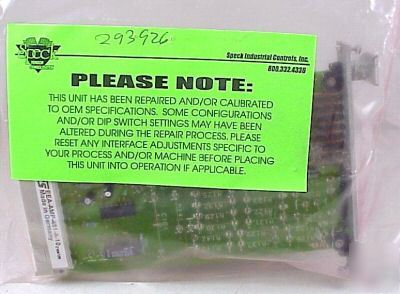

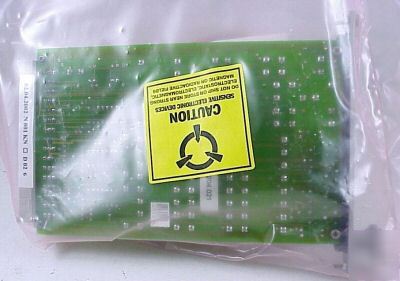

unit is in sealed static bag marked
"unit has been repaired and/or calibrated to OEM specifications"
no components have been added to solder terminals
http://hydraulics.eaton.com/products/pdfs/gb2095a.pdf
note: item from storeroom of a stoneware plant
bag has some pottery dust & dirt from storage
NO TESTING HAS BEEN DONE UNLESS OTHERWISE SPECIFIED
ITEM FROM A STONEWARE PLANT CLOSURE
Note: we package as carefully as possible in advance of the item being listed.
