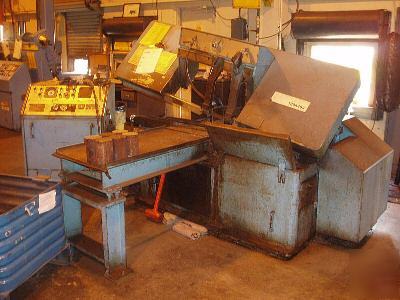

16" x 20" marvel model 15A horizontal band saw
Flat Stock Capacity, Maximum........... 16" x 20"
Band Length...................................... 15'6"
Band Width....................................... 1.25""
Band Thickness................................. .042"
Band Speeds, Variable....................... 50 to 400 FPM
Band Feed, Infinitely Variable.............. 0 to 400 LBS
Load Capacity, Maximum................... 14000 LBS
Motor, Horsepower/RPM.................... 7.5 HP/1800 RPM
Hydraulic Motor, Horsepower/RPM...... 3 HP/1800 RPM
Overall Dimensions, L x W................. 15'10" x 7'10"
Overall Height.................................... 4'4"
Weight, Approximately....................... 7500 LBS
Hydaulic Stock-Feeding and Clamping Vises
Hydraulic Band Saw Up-Feed and Down-Feed
