ATEB40X evaluation board for atmel AT91R40008/AT91FR401
ATEB40x Evaluation Board for Atmel AT91R40008/AT91FR40162
ATEB40x Evaluation Board for Atmel AT91R40008/AT91FR40162

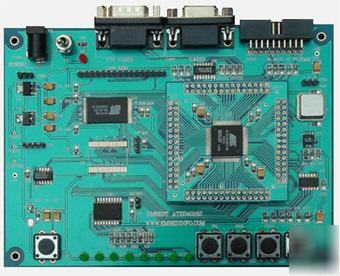

ATEB40x Evaluation Board enables real-time code development and evaluation. It supports the AT91x40 series with its various memory options. The ATEB40x Evaluation Board is comprised a mother board and a daughter board. The daughter board is a microcontroller core board, it can be:
Ø an AT91M40800 daughter board, with 8K Bytes of On-chip SRAM
Ø an AT91R40807 daughter board, with 136K Bytes of On-chip SRAM
Ø an AT91R40008 daughter board, with 256K Bytes of On-chip SRAM
Ø an AT91FR40162 daughter board, with 256K Bytes of On-chip SRAM and 1024K Words 16-bit Flash Memory
Orders must sepcify MCU in AT91FR40162, AT91R40807, AT91M40800 and AT91R40008.
Ø Evaluation Board based on AT91x40 series
Ø Four user-defined push buttons
Ø A footprint of a 256-KB 16-bit SRAM (upgradeable to 512K Bytes)
Ø 512K Bytes of EEPROM with two-wire interface access (controlled by a software twowire interface)
Ø 16-pin LCD expansion connector
Ø 20-pin JTAG interface connector
Ø Boot software and test software
Ø uCos BSP (uC/OS-II needs to be licensed if used commercially, please contact Micrium)
ATEB40x EVB function block diagram
The evaluation board is delivered with a DB9 plug-to-DB9 socket straight-through serial cable to connect the target evaluation board to a PC. A bare power lead with a 2.1 mm jack on one end for connection to a bench power supply is also delivered.
The evaluation board is also delivered with CD-ROM:
Ø user manual with circuit schematic drawing
Ø Boot software and test software
Ø uCos BSP (uC/OS-II needs to be licensed if used commercially, please contact Micrium)
The evaluation board is capable of supporting different kinds of debugging systems, using an ICE interface.
Ø 1x AT91R40008 daughter board
Ø 1x Serial cable, power cable
- user manual with circuit schematic drawing
- Boot software and test software
Orders must specify MCU in AT91FR40162, AT91R40807, AT91M40800 and AT91R40008.
