TDS7104 1GHZ 10GS/s digtial phosphor oscilloscope w/3M

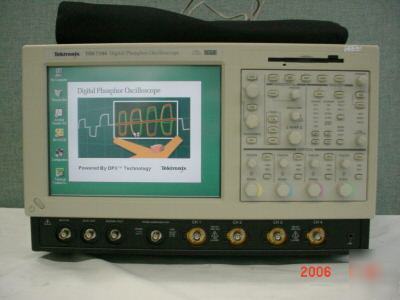

Tektronix TDS7104 1GHz 4 Channel 10 GS/s Digital Phosphor Oscilloscope Oscilloscope with option 3M
The Tektronix TDS7104 oscilloscope is a graph-displaying device – it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.
The Tektronix TDS7104 oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the “moving parts†of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.
* 4 GHz, 2.5 GHz, 1 GHz and 500 MHz Bandwidth Models
* Up to 20 GS/s Real-time Sample Rate
* Up to 32 Megasamples Memory Depth
* >400,000 Wfms/Second Maximum Waveform Capture Rate
* Jitter Measurements to 1 ps RMS
* Control Via Classic Direct Controls, Touch-sensitive Color Display or Mouse
* Open MS Windows Environment
* Option 3M: 16 M samples max, 4 M samples/ch

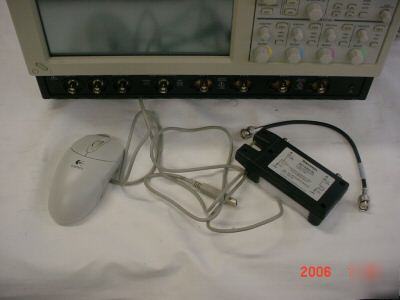

This unit includes a CD copy of Manual Set, a Power Cord , a Mouse, and CAL/Deskew Fixture, no probe
