#77B extrued hone abrasive flow machine #25272

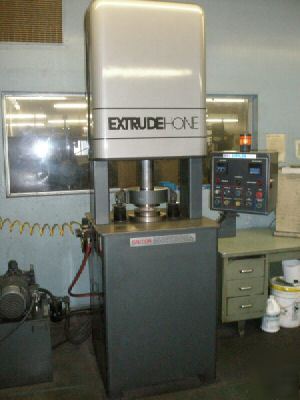

#77B EXTRUED HONE ABRASIVE FLOW MACHINE
New 1994, Serial No L94-0807, Model 77B
Hydraulic Clamping - Automatic Cycling
Media Cylinder Diameter................ 3-1/4"
Media Cylinder Capacity................ 91"(3)
Media Cylinder Capacity................ 6 LBS
Media Extrusion Pressure............... 300 to 1500 PSI
Media Delivery Rate.................... 0 to 5 GPM
Distance Between Columns............... 14-3/4"
Maximum Opening........................ 8-1/4"
Work Table Height...................... 42"
Hydraulic System Pressure.............. 300-1500 PSI
Hydraulic Pump Capacity................ 5 GPM
Hydraulic Clamping Force, Max.......... 7 TONS
Motor, Horsepower...................... 5 HP
Electrical System...................... 220/3/60
Overall Dimensions, W x D.............. 2'6" x 2'6"
Overall Height, Open................... 8'8"
Overall Height, Closed................. 7'11"
Weight, Approximately.................. 2180 LBS
NOTE: Model 77B Is A Full Pressure Machine With A
3-1/4" Diameter Media Cylinders. This Machine Is
Well Suited To Polish Drawing Dies, Cold Heading
Dies, Powdered Metal Compacting Dies.
PRICE: F.O.B. OUR WAREHOUSE............ $19,500.00
All machines/equipment subject to prior sale.
