Jbi wash paint booth with lpi air 3 axis manlifts
BECAUSE WE PAID $15,000 TO HAVE THIS BOOTH DISMANTLED AND PALLETIZED.
(NOTE: JBI GOT BOUGHT OUT BY GLOBAL FINISHING SEVERAL YEARS AGO)
INSTALLED IN 1999 ONLY 100 HRS OF USE
BOOTH IS IN LIKE NEW CONDITION (NO RUST AT ALL)
18’W X 22’ H X 68’ 3"L (INSIDE DIMENSIONS)
20’ 4"W X 23’ 3†H X 73’ 11†LONG WITH DOORS OPEN (OUTSIDE DIMENSIONS)
BIFOLD DOORS BOTH ENDS 13’4†W X 13’11†H
13†HEAVY DUTY I BEAM FRAMEWORK CAN SUPPORT 6 TON LOAD THRU THE BOOTH
INCLUDES ALL DUCT WORK, CONTROL PANEL
PAIR OF JBI / LPI PERSONNEL AIR OPERATED 3 AXIS MANLIFTS
Max. height to the top of the rack on the basket 20’3â€
Max lift height 15’ to the floor of the basket
INSTALLED 1999 USED ONLY 100 HOURS
BONUS: 2 W6 x 15 Top Rail Beams Approx 66’ long each
2 2â€x2†tube lower rails Approx. 66’ long each
Lifts will have Stainless steel pins and shafts
HAVE ORIGINAL DRAWINGS AND OWNERS/OPERATOR MANUALS
WILL SELL BOOTH SEPERATE FROM MANLIFTS

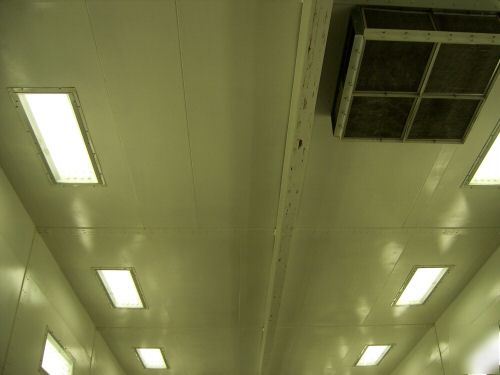

Booth was originally designed as an UPDRAFT WASH BOOTH note the louvered intakes down the sidewalls, and the two fans in the ceiling.
Booth COULD be converted to side downdraft by replacing some of the solid roof panels with intake filters and replacing the bottom 42†H side panels
with exhaust sections. OR COULD be converted to a crossdraft booth by adding bridge type exhaust chamber and filters in doors.
CAN ASSIT IN MAKING CONVERSION. WE ALSO CAN INSTALL AT YOUR LOCATION. CONTACT BART FOR DETAILS (***)-815-3815
Spray Booths for Truck and Large Equipment Finishing
Truck and Large Equipment spray booths are designed, engineered and manufactured to meet the needs of the transit, recreation, agriculture, construction, large equipment, and trucking industry. They are also ideal for commercial vehicles like large vans, similar to the Dodge Sprinter line of vehicles.
Global Finishing Solutions paintbooths provide a safe and efficient working environment for your finishing operation along with the latest technology.
Downdraft and Side-Downdraft Standard Features:
• Precise temperature most fuel efficient
• Recirculating cure or forced air cure available
Pressurized and Non-Pressurized Crossdraft Standard Features:
• Pressurized or non pressurized horizontal flow
• Heated Forced Dry™ and non heated air replacements systems
-Indoor and outdoor heated air replacement systems (Forced Dryâ„¢ & Recirculating Cure)
-2-axis and 3-axis painter's lifts
-EnviroCure VOC abatement systems
Control systems: PLC, monitoring systems and electro-mechanical
-Global Finishing Solutions High Capacity Spray Booths are designed to meet or exceed OSHA and other codes including NFPA 33, 70, 86, 91, 101, NFCC, CEC, BOCA, UFC and IFC
• White pre-coated galvanized G-90 steel panels
• Structural components ranging from 11 to 14 gauge steel
• Precise tolerance engineering
• Wall mounted 6-tube ETL listed Class 1, Division 2 fluorescent light fixtures with color-corrected T-8 tubes
• Equipment installation by certified technician
• Multiple width and length combinations allow for expansions from 24' to unlimited lengths
12731 Norway Road • Osseo, WI • 54758
P(***)-848-8738 • F(***)-597-2193 • ****@globalfinishing.com
